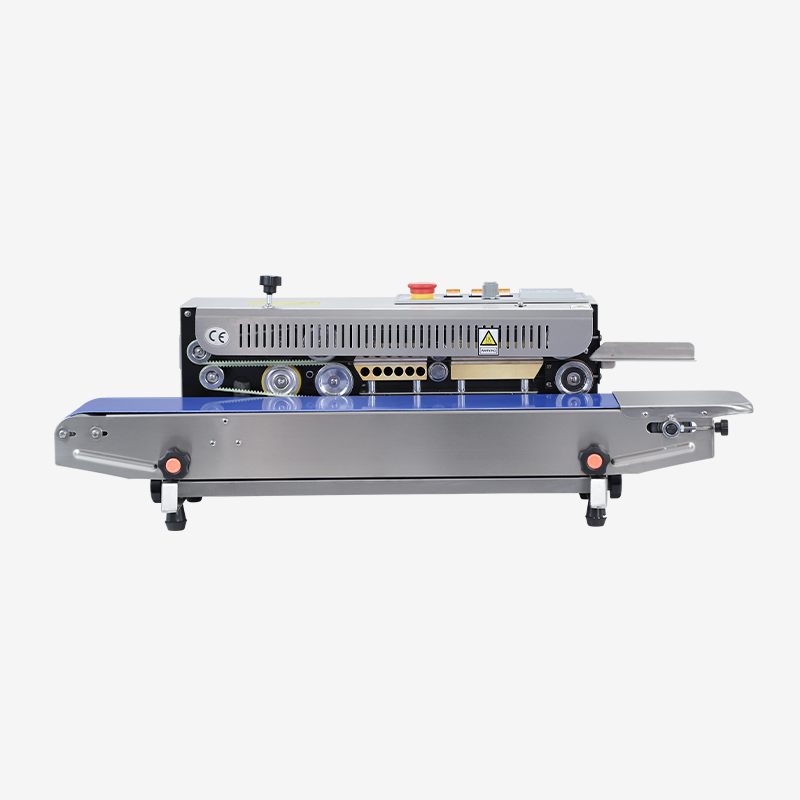

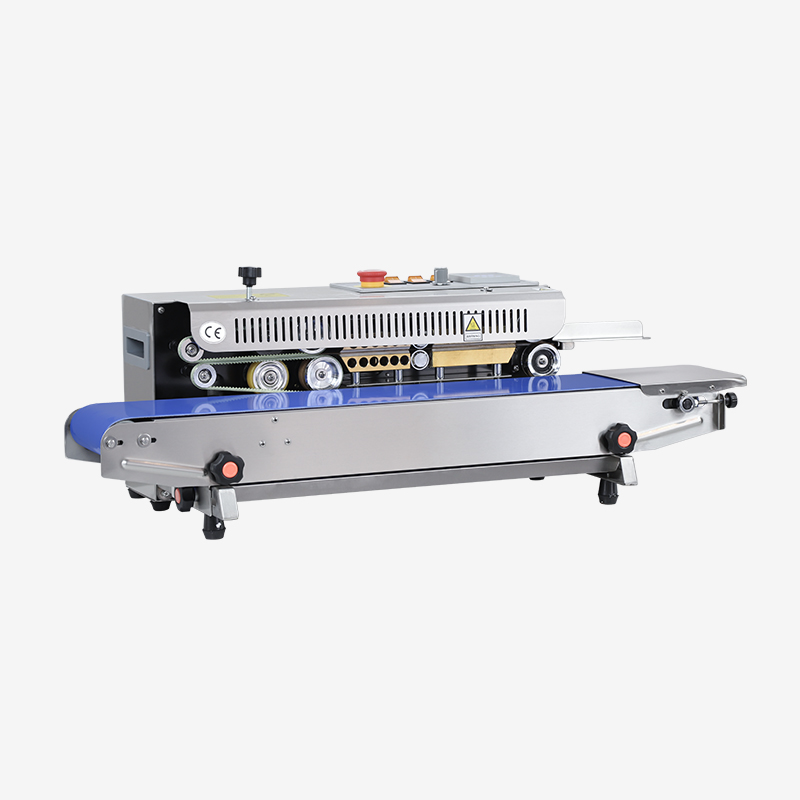

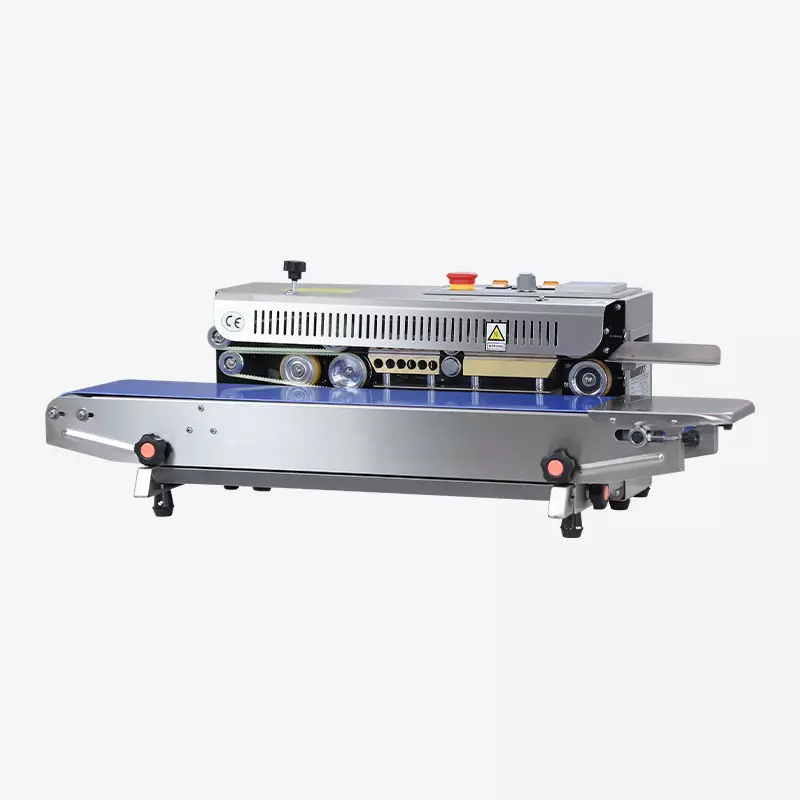

FRM-810 series is available in three models: horizontal model (FRM-810I), vertical model (FRM-810II), and floor-standing model (FRM-810III). The machine can seal all kinds of heat-sealable materials, which adopts a constant temperature control system and step-less speed adjusting transmission mechanism. The machine works with a solid-ink coder to print the colored labels while sealing. The coder is able to print at high speed with instant dry and highly legible letters that have good adhesion properties. The printing wheel in the machine can be used for both R arrange and T arrange of types. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT).
Features:
√Reliable performance
√Simple operation
√Convenient maintenance
√Wide range of application
√Constant temperature control system
√Stepless speed regulation
√With printing function
√Various color ink wheels are selectable
√Counting device is optional
Application:
1. FRM-810 series plastic film bag continuous sealing machine is suitable for sealing all kinds of heat-sealed packages continuously. Such as PE bag, accordion bag, aluminum foil bag, kraft paper bag, electrostatic bag, Yin-Yang bag.
2. It is widely used in the food, pharmaceutical industry, chemical industry, agriculture, lubricating oil, and other industries.
3. To use in the place where there is a restriction on space, such as small factory, monopolization shop, and workshop, etc.
Product Details | |
---|---|
MODEL | FRP-770I |
Seal Width (mm) | 10 |
Voltage (V/Hz) | AC 220/50 |
Sealing Power (W) | 300X2 |
Motor Power (W) | 50/100W |
Temperature Range | 0-300℃(Adjustable) |
Sealing Speed (m/min) | 0-16(0-24) |
Distance from Sealing Center to Conveyor | 10-40mm |
Printing type | Hot foaming inkjet |
Distance from Base Plate to Interior Conveyor | 60-120mm |
Conveyor Size | L 844 X W 153mm |
Max. Distance from Sealing Center to the Mouth of Bag | 21mm |
Consumables Replacement Method | Lock / Open |
Overall Conveyor Load | / |
External Dimensions | 844 X 375 X 425mm |
Operation System | Linux |
Touch Screen Size | 5 Inch Capacitance Screen |
Touch Screen Resolution | 800×480 |
Processor |
Quad-core High-performance Processor
Max. Main Frequency 1.5GHz
Extremely Fast Response, Smooth
|
Internal Memory | 1G+4G |
Nozzle | TIJ2.5Hot foaming inkjet Sprinkler |
Inject-Printing Font Height | 1.5-12.7mm |
Printing Length | Unlimited |
Max.Printing Lines | 6lines |
Ink Type & Capacity | Oiliness/42ml |
Ink Color | Black(standard)/Red/Green/Blue/Yellow/White/Transparent |
Inject-Printing Material |
Suitable for Any Composite Film Material
Special Material Need Customized Ink
|
Languages in Touch Screen | Chinese, English, Arabic, Turkish, Spanish, Portuguese, Korean, Russian (support customization) |
Inject-Printing Content |
Chinese, English, Digital, Symbols, Graphics (support any image without conversion format), QR Code, Bar Code (custom barcode
content, system real-time variable barcode), Variable Date (system custom), Variable Count (system custom), Variable QR Code (jet
printing system with real-time variable data , customized online system)
|
Ink-jet Printing Count | Count 0-100000 |
Ink Cartridge Printing Volume | About 200 thousand(refer to the Production Date of 4mm*30mm(Height*Length) |
Inject-Printing Content Storage | Store 200 bars(Individual count storage function for each bar printing content) |
Inject-Printing Font | Adjustable(support customized printing font) |
External Terminal | USB/RS232 serial Terminal/WIFI |
Online Operation | Optional(One host can control 1+N units) |
Adjustable Startup Interface | Optional |
